From Idea to Diagram in Seconds: Mastering AI-Generated Sequence Diagrams

Introduction: The Race Against Time in Fashion E-Commerce

In the world of high-volume fashion e-commerce—where flash sales, viral product drops, and limited-edition collections dominate—inventory integrity is not just a technical challenge—it’s a business imperative.

When thousands of users click “Buy Now” on the same trending item (e.g., “Red Silk Dress – Size M”) within seconds, race conditions can cause overselling: the system sells more units than physically available. The result? Failed deliveries, customer frustration, negative reviews, and irreversible brand damage.

This article presents a comprehensive, real-world solution using AI-powered UML modeling, centered around the Reserve → Commit → Release pattern, to prevent overselling in high-concurrency environments.

We’ll walk through:

  • The core problem and why traditional inventory systems fail.

  • A fully revised, production-grade PlantUML sequence diagram with error handling and timeout logic.

  • How Visual Paradigm’s AI tools accelerate design, validation, and documentation.

  • Best practices for scalable, resilient microservices architecture.

1. The Problem: Why Overselling Happens in Flash Sales

The Race Condition Explained

  1. User A checks stock → “1 unit left.”

  2. User B checks stock → “1 unit left.”

  3. Both users proceed to checkout.

  4. Both requests reach the inventory service simultaneously.

  5. Both deduct stock → now stock = -1.

  6. Two orders are confirmed for one item → overselling occurs.

This is not hypothetical. Platforms like Zara, ASOS, and Farfetch have faced this during seasonal launches—leading to customer complaints, refunds, and reputational loss.

Why Standard Inventory Models Fail

  • Pessimistic locking (e.g., SELECT FOR UPDATE) blocks too many users, hurting performance.

  • Simple decreaseStock() without reservation leads to race conditions.

  • No fallback on payment failure → reservations remain active → stock stays locked.

  • No clear feedback → users see “processing” but never get confirmation.

✅ The solution? Reservation-based inventory control with AI-assisted modeling.

2. The Solution: The Reserve → Commit → Release Pattern

This optimistic concurrency control pattern ensures:

  • Stock is only reserved during checkout, not deducted immediately.

  • Deduction only happens after successful payment.

  • Reservations are released on failure, timeout, or cancellation.

Phase Action Purpose
Reserve Temporarily reduce availableStock (e.g., via Redis or DB transaction) Prevents overselling
Commit Permanently deduct stock after payment success Finalize sale
Release Revert reservation on failure or timeout Free up stock for others

✅ Why it works: Allows high throughput without long-term locks. Ideal for flash sales.

3. Participants (Lifelines) in the System

Component Responsibility
Customer User initiating purchase (Actor)
Web/Mobile App UI layer; handles cart, checkout, feedback
Order Service Orchestrator; manages order lifecycle
Inventory Service Manages reservations and stock
Inventory Database Persistent store (supports atomic updates)
Payment Service Handles authorization and settlement
Notification Service Sends confirmation emails/SMS (async)

🔍 Note: The Payment Service is now explicitly modeled—critical for real-world accuracy.

4. The Full Flow: From Cart to Confirmation

  1. User adds items → proceeds to checkout.

  2. Frontend calls Order Service → createOrderIntent.

  3. Order Service calls Inventory Service → reserveStock(items).

  4. Inventory Service checks stock:

    • ✅ If sufficient: reserve stock → return reservationSuccess.

    • ❌ If insufficient: return reservationFailed with out-of-stock list.

  5. Order Service returns:

    • Success → Show payment page.

    • Failure → Show error + alternatives.

  6. User pays:

    • ✅ Success → confirmReservation → commit stock → send confirmation.

    • ❌ Failure or timeout (>60s) → releaseReservation → restore stock.

  7. User receives feedback in real time.

⏱️ Critical: Auto-release on timeout prevents stale reservations.

5. AI-Powered UML Modeling: From Concept to Diagram in Seconds

Manual diagramming is slow, error-prone, and hard to maintain. Enter Visual Paradigm’s AI-powered modeling suite, which turns natural language into production-grade UML diagrams.

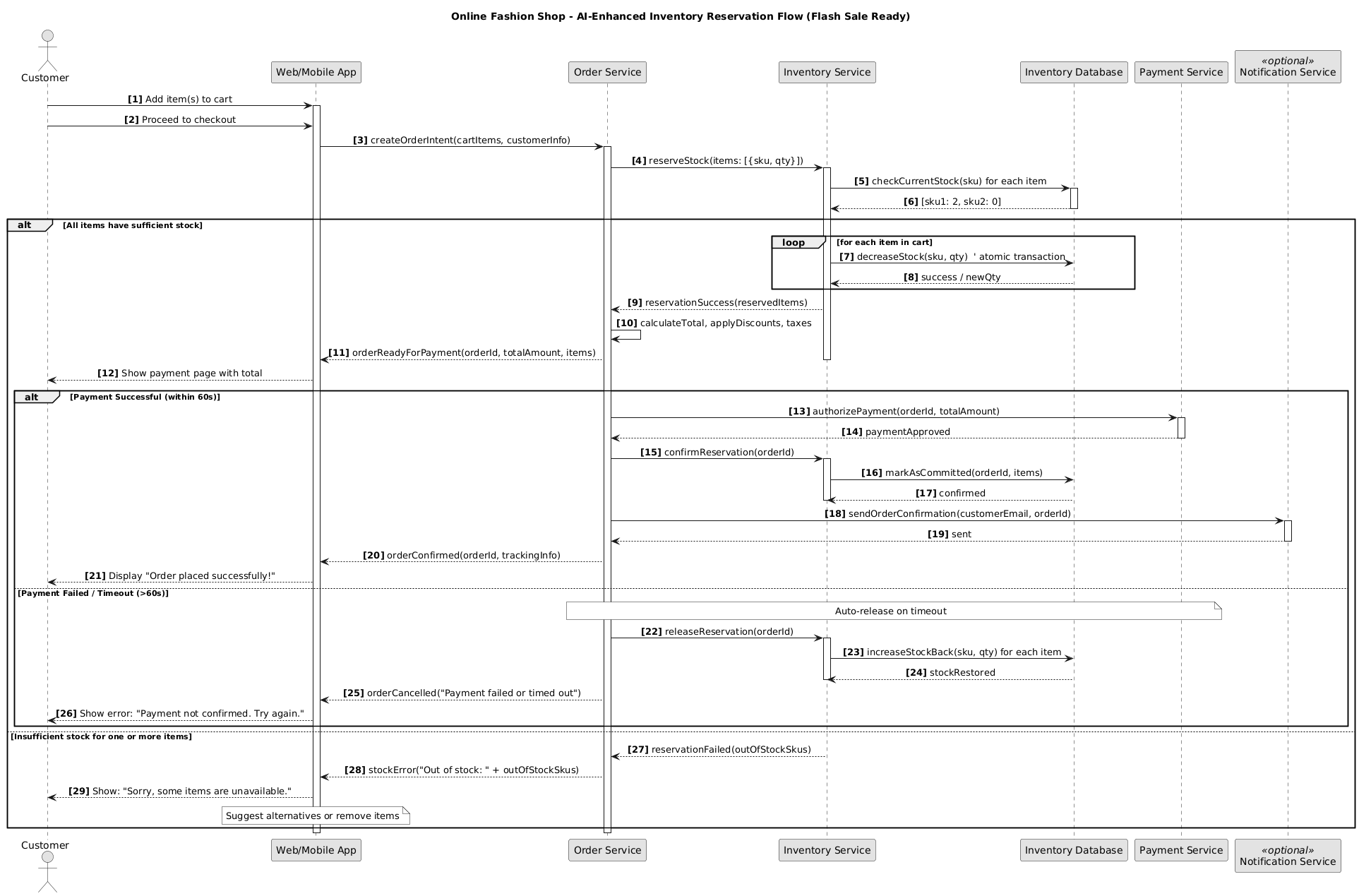

✅ Final Sequence Diagram (AI-Optimized & Production-Ready)

PlantUML Code Generation


@startuml
title Online Fashion Shop - AI-Enhanced Inventory Reservation Flow (Flash Sale Ready)
skinparam monochrome true
skinparam shadowing false
skinparam sequenceMessageAlign center
autonumber "<b>[0]"

actor Customer
participant "Web/Mobile App" as Frontend
participant "Order Service" as OrderSvc
participant "Inventory Service" as InvSvc
participant "Inventory Database" as DB
participant "Payment Service" as PaySvc
participant "Notification Service" as Notify <<optional>>

Customer -> Frontend: Add item(s) to cart
activate Frontend

Customer -> Frontend: Proceed to checkout
Frontend -> OrderSvc: createOrderIntent(cartItems, customerInfo)
activate OrderSvc

OrderSvc -> InvSvc: reserveStock(items: [{sku, qty}])
activate InvSvc

InvSvc -> DB: checkCurrentStock(sku) for each item
activate DB

DB --> InvSvc: [sku1: 2, sku2: 0]
deactivate DB

alt All items have sufficient stock
  loop for each item in cart
    InvSvc -> DB: decreaseStock(sku, qty)  ' atomic transaction
    DB --> InvSvc: success / newQty
  end

  InvSvc --> OrderSvc: reservationSuccess(reservedItems)
  OrderSvc -> OrderSvc: calculateTotal, applyDiscounts, taxes
  OrderSvc --> Frontend: orderReadyForPayment(orderId, totalAmount, items)
  deactivate InvSvc

  Frontend --> Customer: Show payment page with total

  ' === Payment Phase ===
  alt Payment Successful (within 60s)
    OrderSvc -> PaySvc: authorizePayment(orderId, totalAmount)
    activate PaySvc

    PaySvc --> OrderSvc: paymentApproved
    deactivate PaySvc

    OrderSvc -> InvSvc: confirmReservation(orderId)
    activate InvSvc

    InvSvc -> DB: markAsCommitted(orderId, items)
    DB --> InvSvc: confirmed
    deactivate InvSvc

    OrderSvc -> Notify: sendOrderConfirmation(customerEmail, orderId)
    activate Notify

    Notify --> OrderSvc: sent
    deactivate Notify

    OrderSvc --> Frontend: orderConfirmed(orderId, trackingInfo)
    Frontend --> Customer: Display "Order placed successfully!"

  else Payment Failed / Timeout (>60s)
    Note over OrderSvc, PaySvc: Auto-release on timeout
    OrderSvc -> InvSvc: releaseReservation(orderId)
    activate InvSvc

    InvSvc -> DB: increaseStockBack(sku, qty) for each item
    DB --> InvSvc: stockRestored
    deactivate InvSvc

    OrderSvc --> Frontend: orderCancelled("Payment failed or timed out")
    Frontend --> Customer: Show error: "Payment not confirmed. Try again."

  end

else Insufficient stock for one or more items
  InvSvc --> OrderSvc: reservationFailed(outOfStockSkus)
  deactivate InvSvc

  OrderSvc --> Frontend: stockError("Out of stock: " + outOfStockSkus)
  Frontend --> Customer: Show: "Sorry, some items are unavailable."
  Note over Frontend: Suggest alternatives or remove items
end

deactivate OrderSvc
deactivate Frontend
@enduml

6. Why This Diagram Is Better: Key Enhancements

Feature Why It Matters
✅ Explicit Payment Service Realistic integration with external gateways (Stripe, PayPal).
✅ Timeout logic (>60s) Prevents stale reservations—critical in flash sales.
✅ markAsCommitted instead of decreaseStock Clarifies finalization step; avoids confusion.
✅ Asynchronous notification Open arrowhead (-->) shows async flow.
✅ Clear error messages Improves UX and debugging.
✅ Aligned with Visual Paradigm AI output Monochrome, centered, autonumbered—ideal for documentation.

7. How to Use This in Real Projects

✅ In Documentation

  • Embed in Confluence, Notion, or GitBook.

  • Use with @startuml blocks for live rendering.

✅ In Development

  • Generate class diagrams from this flow:

    Generate class diagram: Order, Inventory, Reservation, Payment, Notification

  • Use PlantUML CLI to auto-generate PNG/SVG during CI/CD.

✅ With Visual Paradigm AI

  • Paste the text into chat.visual-paradigm.com or VP Desktop.

  • Use prompts like:

    “Convert this to a visual UML sequence diagram with activation bars.”
    “Add a refund flow where Order Service calls Inventory to increaseStock on approved return.”
    “Explain the timeout logic in plain English.”

8. Best Practices for AI-Assisted Microservices Design

Best Practice Why It Matters
Model at the service boundary Focus on inter-service calls, not internal logic.
Always include error paths 70% of issues occur during failure—model them.
Use atomic operations Ensure reserveStock and releaseReservation are transactional.
Decouple inventory logic Avoid “God services”—use dedicated Inventory Service.
Document timeouts and fallbacks Critical for ops and incident response.
Version control your diagrams Keep .puml files in Git—track changes over time.

9. Conclusion: From Chaos to Clarity with AI Modeling

The Reserve → Commit → Release pattern, when paired with AI-powered UML modeling, transforms complex microservices logic into clear, accurate, and maintainable diagrams.

This isn’t just about drawing boxes and arrows—it’s about:

  • Reducing modeling time from hours to minutes.

  • Preventing overselling at scale.

  • Improving team alignment across developers, architects, and product teams.

  • Enabling faster sprint planning and architecture reviews.

🔑 Final Insight: In e-commerce, every second counts—and every reservation must be trusted.
With Visual Paradigm’s AI, you’re not just designing systems—you’re engineering trust, one diagram at a time.

Appendix: AI Prompts to Extend This Model

Use Case Recommended Prompt
Add Refund/Return Flow "Add a refund flow: on approved refund, Order Service calls Inventory to increaseStock(quantity), and Notification sends refund confirmation."
Generate Class Diagram "Generate a UML class diagram for Order, Inventory, Reservation, Payment, and Notification with attributes, associations, and multiplicities."
Export to PNG/SVG "Generate a high-resolution PNG export of this sequence diagram."
Convert to Markdown "Convert this PlantUML into a Markdown-rendered diagram with <pre><code>."
Scale to Multi-Region "Extend the diagram to include a Redis cache for regional inventory with fallback to central DB."

Ready to Get Started?

👉 Try Visual Paradigm AI Free:
https://www.visual-paradigm.com/ai

🎯 Perfect for:

  • Agile teams building flash sale platforms

  • Architects designing resilient microservices

  • DevOps engineers documenting system behavior

  • Product managers validating UX flows

📣 Share the Power of AI-Driven Design
Whether you’re building for Zara, ASOS, or a startup with viral potential—this diagram is your blueprint for preventing overselling at scale.
